Digital Measuring Projector  PDF Download

PV-3000     series   (Reverse image)
PV-3000E   series   (Erect image)

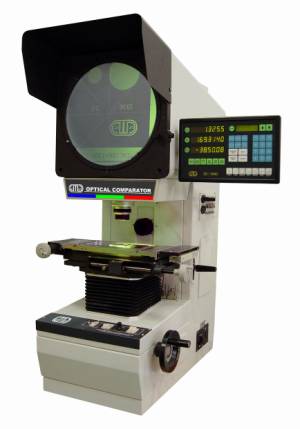

PV series profile projectors are reliable and affordable measuring system of high precision and efficiency. The measuring projector is widely used in calibration labs or on the shop floor as a stand-alone unit. It's also a good choice for general purpose tool room work to measure complex shapes and hole patterns easily and quickly. We have made erect image type to meet different requirements.

Features:

  1. Excellent optical measuring system to project precisely magnified image.
  2. Accuracy of the contour measuring is under 0.08%.
  3. Equipped with Mini-printer and DC-3000 data processing system and foot-switch for measuring.
  4. Erect image measuring for different requirements.

PV-3000(E) Series Specifications:



Model

PV-3007(E)

PV-3010(E)

PV-3015(E)

Stage size (mm)

260 x 152

306 x 152

340 x 152

Glass size (mm)

125 x 100

175 x 100

196 x 96

X-axis travel (mm)

75

100

150

Y-axis travel (mm)

50

50

50

Z-axis travel (mm)

90 (for focusing)

90 (for focusing)

90 (for focusing)

Measuring accuracy (μm)
L: measuring length (mm)

3.0 + L/75

4.0 + L/50

4.0 + L/25

Resolution (X/Y-axis)

0.0005 mm (0.5μm)

Projector Screen

Size (mm)

Ø312, usable range > Ø300

Rotation range

0 ~ 360º

Angle resolution

1’ or 0.01º

Objective Lens

Magnification

10X(Std.)

20X(Opt.)

50X(Opt.)

100X(Opt.)

Object view (mm)

Ø30

Ø15

Ø6

Ø3

Working Dist. (mm)

77.7

44.3

38.4

25.3

Max. work-piece height (mm)

90

90

90

90

Data processing system

DC-3000 multi-function data processing system :
1. Gathering the data and measuring point, circle, angle and distance
2. Coordinate rotation
3. RS-232 data output

Illumination

Transmission and reflection light source : 24V/150W-halogen lamp

Power

110V/220V(AC), 50/60Hz, 400W total power

Light source cooling

Forced air cooling

Instruments dimension (mm)

770 x 550 x 1100

770 x 550 x 1100

770 x 550 x 1100

Weight (kg)

120

125

130

Option

Mini-printer, Edge detector and so on, please refer to accessories of optical comparator for more detail.
